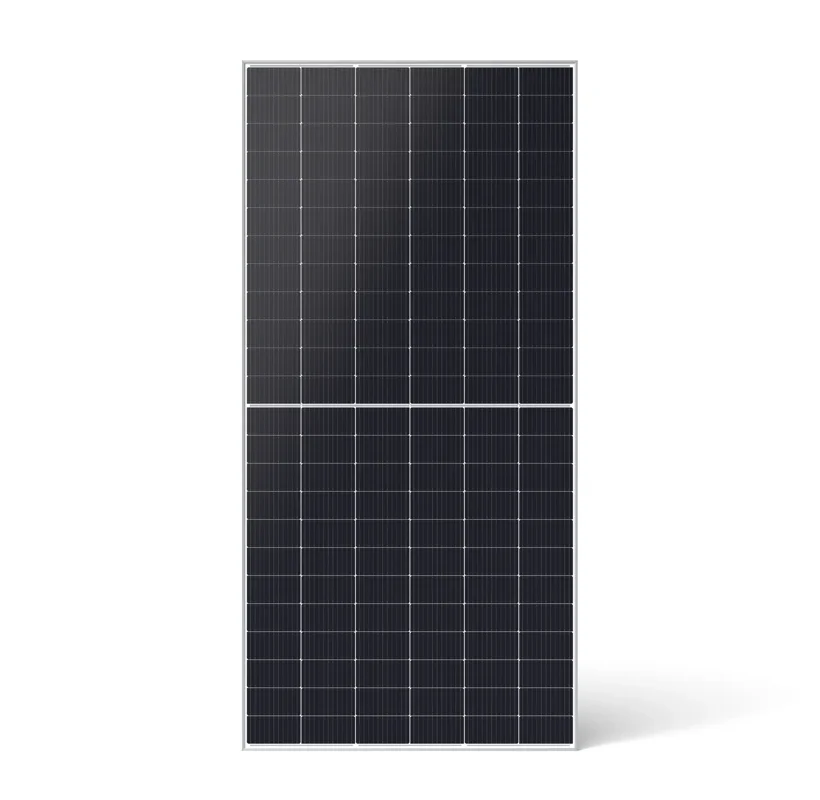

JA Solar JAM72D30 520W: Versatile Commercial Panel for SA 2025

520W PERC panel with 20.9% efficiency. Multi-busbar for low-light. 12/25-year warranty.

MK

Researched & reviewed by Maarten Kronberger

Published 2025-11-16 • SolarPowerGuide

JA Solar JAM72D30 520W: Versatile Commercial Panel for SA (2025 Review)

The C&I solar sector in South Africa grew 30% in 2025. The JA Solar JAM72D30 520W is the go-to panel for warehouses, factories, and office parks — offering proven PERC reliability with multi-busbar (MBB) technology for superior low-light and high-temperature performance.

R2,800
Price/panel
20.9%
Efficiency
520 W
Power
4.5/5
SPG Rating

Full Technical Specifications

Power Output520 W
Efficiency20.9%
Cell Type144 half-cut monocrystalline PERC (MBB)
Dimensions2093 × 1134 × 35 mm
Weight28.0 kg
Temp Coefficient (Pmax)-0.35%/°C
Low-Light Performance95.3% @ 200 W/m²
Wind Load2400 Pa
Junction BoxIP68, 3 bypass diodes

Annual Yield by Region (kWh/kWp)

  • Johannesburg
    1,750–1,950
  • Durban
    1,700–1,900
  • Cape Town
    1,850–2,050

Installation Checklist

  • Perfect for flat concrete or corrugated roofs
  • Use 6 mm² DC cabling for 18–20 panel strings
  • Compatible with Growatt, Luxpower, Deye, and Victron
  • MBB reduces hot-spot risk in high-ambient temps

Warranty Coverage

12 Years
Product
25 Years
Performance (84.8%)
0.55%
Annual Degradation

ROI Example (20 kW System)

Cost: R120,000 installed
SARS 125% Rebate: R66,000 savings
Effective Cost: R54,000
Payback: 5–6 years @ R2.50/kWh

Top Alternatives

PanelPowerEfficiencyPrice
Canadian Solar HiKu7530W21.1%R2,900
Trina Honey M525W20.8%R2,750

FAQs

Does MBB improve low-light output?

Yes — up to 3% better than standard 5BB in cloudy conditions.

Can it handle coastal corrosion?

Anodized frame + IP68 box — suitable up to 500m from coast.

What’s the output in Durban summer?

~1,850 kWh/kWp/year with 30°C average ambient.

Final Verdict

4.5 / 5

A reliable, cost-effective workhorse for South African commercial solar systems.
