Wiring and Electrical Safety for Solar Systems

Essential guide to wiring solar PV systems safely, including panel connections, inverters, grounding, and compliance with South African electrical codes.

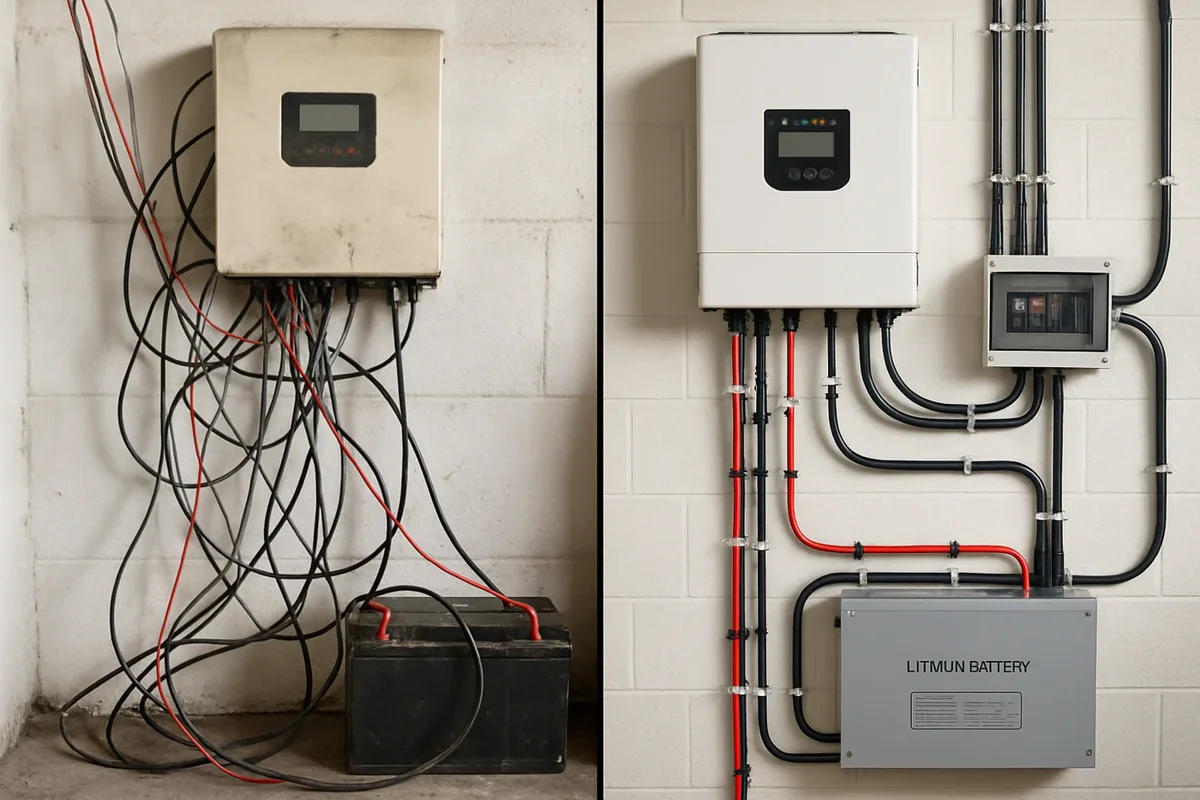

Solar installation
[ AdSense Ad – 728x90 ]

Introduction

Electrical safety is one of the most critical aspects of solar photovoltaic (PV) system installation. While solar energy is clean and renewable, the systems that harness it involve high-voltage components, complex wiring, and sensitive electronics. Improper installation or neglecting safety protocols can lead to serious hazards including electric shock, fire, equipment damage, and even legal liability.

In South Africa, where solar adoption is accelerating due to rising electricity costs and frequent load-shedding, ensuring safe and compliant installations is more important than ever. This guide provides a comprehensive overview of electrical safety practices for solar PV systems, covering panel connections, inverter wiring, grounding, surge protection, and regulatory compliance. Whether you're a homeowner, installer, or project manager, understanding these principles will help protect people, property, and your long-term investment.

Panel Connections

Solar panels are the heart of any PV system, converting sunlight into direct current (DC) electricity. How these panels are connected—either in series, parallel, or a hybrid configuration—has a direct impact on system voltage, current, and overall performance.

Series vs. Parallel Connections

  • Series connection: Panels are connected end-to-end, increasing the system voltage while keeping the current constant. This is ideal for string inverters and long cable runs, but shading on one panel can affect the entire string.
  • Parallel connection: Panels are connected side-by-side, increasing current while maintaining voltage. This setup is more resilient to shading and is often used with microinverters or power optimizers.
  • Hybrid connection: Combines series and parallel configurations to balance voltage and current, especially in larger systems.

Polarity and Wiring Best Practices

  • Always verify polarity before connecting panels. Reversed polarity can damage inverters and void warranties.
  • Use color-coded cables (typically red for positive and black for negative) and label connections clearly.
  • Ensure all connectors are compatible and securely fastened to prevent arcing or loose connections.
  • Use UV-resistant and weatherproof cables rated for outdoor use.
  • Minimize cable lengths to reduce voltage drop and improve efficiency.

Panel connections should be tested with a multimeter before energizing the system. Any anomalies in voltage or resistance should be investigated and resolved immediately.

Inverter Wiring

The inverter is responsible for converting DC electricity from the panels into alternating current (AC) used by household appliances or fed into the grid. Wiring the inverter correctly is essential for system performance and safety.

DC Input Wiring

  • Connect the positive and negative DC cables from the panel array to the inverter’s DC input terminals.
  • Use appropriate fuses or breakers between the array and inverter to protect against overcurrent.
  • Ensure cable gauge matches the current rating and distance to minimize losses.
  • Install DC isolators near the inverter for emergency shutdown and maintenance access.

AC Output Wiring

  • Connect the inverter’s AC output to the distribution board using appropriately rated cables and breakers.
  • Install an AC isolator between the inverter and distribution board for safety and compliance.
  • Ensure the inverter is synchronized with the grid if it’s a grid-tied system. Anti-islanding protection is mandatory.
  • Label all breakers and isolators clearly to indicate their function and voltage rating.

Follow the manufacturer’s wiring diagram and installation manual precisely. Deviations can result in malfunction, safety risks, or warranty voiding.

Grounding and Surge Protection

Grounding is a fundamental safety measure that protects people and equipment from electrical faults. Surge protection safeguards the system against voltage spikes caused by lightning, grid fluctuations, or switching events.

Grounding Best Practices

  • Ground all metal components including panel frames, mounting structures, and inverter enclosures.
  • Use copper grounding conductors with appropriate gauge and corrosion-resistant clamps.
  • Connect the grounding system to a dedicated earth rod driven into the soil to meet local resistance requirements.
  • Bond the DC and AC grounding systems to ensure continuity and prevent potential differences.

Surge Protection Devices (SPDs)

  • Install DC SPDs between the panel array and inverter to protect against lightning-induced surges.
  • Install AC SPDs between the inverter and distribution board to protect household appliances.
  • Choose SPDs rated for the system’s voltage and current, and ensure they comply with SANS 10142 standards.
  • Replace SPDs after major surge events or according to manufacturer guidelines.

In areas prone to lightning, consider additional protection such as lightning arrestors and equipotential bonding. These measures can prevent catastrophic damage and reduce insurance premiums.

Compliance and Inspections

Electrical safety is not just a technical concern—it’s a legal requirement. South African regulations mandate that solar PV systems meet specific standards and be installed by qualified professionals.

Regulatory Requirements

  • All grid-tied systems must be installed by a licensed electrician registered with the Department of Labour.
  • Installations must comply with SANS 10142-1 (Wiring of Premises) and SANS 10142-1-2 (Renewable Energy Systems).
  • Municipal approval is required for grid-tied systems, including submission of electrical diagrams and compliance certificates.
  • Systems must include anti-islanding protection to prevent backfeeding during outages.

Inspection and Documentation

  • Schedule an inspection by a municipal or independent electrical inspector after installation.
  • Document all wiring diagrams, component specifications, and test results.
  • Provide the client with a Certificate of Compliance (CoC) and maintenance guidelines.
  • Keep records for warranty claims, insurance, and future upgrades.

Non-compliant installations can result in fines, insurance denial, or disconnection from the grid. Always verify local requirements before starting a project.

Advanced Safety Considerations

As solar technology evolves, new safety challenges and solutions emerge. Installers and system owners should stay informed about best practices and innovations.

Arc Fault Detection

  • Arc faults occur when damaged wires or loose connections create high-temperature discharges.
  • Modern inverters include arc fault detection and interruption (AFDI) features to shut down the system automatically.
  • Regular visual inspections and thermal imaging can help detect potential arc faults before they escalate.

Fire Safety

  • Use fire-resistant cable conduits and junction boxes, especially in roof cavities or enclosed areas.
  • Maintain clear access to isolators and emergency shutoff switches for first responders.
  • Install smoke detectors and fire extinguishers near inverter rooms or battery banks.
  • Ensure all wiring is properly rated and protected from overheating or short circuits.

While solar systems are generally safe, poor installation or aging components can increase fire risk. Regular inspections and adherence to fire codes are essential for peace of mind.

Battery Safety

  • Install batteries in well-ventilated areas to prevent heat buildup and gas accumulation.
  • Use battery management systems (BMS) to monitor temperature, voltage, and charge cycles.
  • Follow manufacturer guidelines for spacing, enclosure, and maintenance.
  • Keep flammable materials away from battery banks and ensure proper signage is in place.

Lithium-ion batteries are safer and more efficient than lead-acid alternatives, but they still require careful handling and monitoring. Battery fires, though rare, can be intense and difficult to extinguish.

Training and Certification

Electrical safety begins with qualified personnel. In South Africa, solar installers must meet specific training and certification standards to ensure safe and compliant installations.

  • PV GreenCard: A national certification program that verifies installer competence and system quality.
  • Department of Labour registration: Electricians must be registered and licensed to perform grid-tied work.
  • Continuous professional development: Installers should stay updated on new technologies, regulations, and safety practices.
  • Client education: Homeowners should receive basic training on system operation, shutdown procedures, and emergency contacts.

Choosing certified professionals not only ensures safety but also protects your investment and simplifies insurance and warranty claims.

Conclusion

Electrical safety is the foundation of a successful solar PV installation. From panel connections and inverter wiring to grounding, surge protection, and regulatory compliance, each step plays a vital role in protecting lives, property, and equipment. In South Africa’s evolving energy landscape, where solar adoption is surging, safe installations are not optional—they’re essential.

By following best practices, working with licensed professionals, and staying informed about new safety technologies, you can ensure your solar system delivers reliable, efficient, and hazard-free energy for decades. Whether you're powering a home, a business, or a farm, electrical safety is the key to unlocking the full potential of solar energy.
